Home > Products > PVC/TPO FILM Calender Production Line > CALENDER FOR SOFT PVC/TPO FILM
CALENDER FOR SOFT PVC/TPO FILM
Fruitive International Co. helps consult and design different types of PVC / TPO soft material production line for customers and suitable for a variety of PVC / TPO soft material production. It is applied to products such as PVC banner, tablecloth, shower curtain, vinyl floor, sticker, tiles backing, transparent film car decorative, flooring agriculture film, artificial leather, TPO tablecloth, printed films and so on. A Calender is the main equipment and plays an important role of a production line, and Reverse "L" shape 4 rollers calender is also the core of a production line. Hence, this is important when choosing the rightproducts. We always make every effort to assist our clients to select the requested products in regarding to some technical aspects such as the diameter, the width and the material of the calendar roller with the maximum capacity in order to meet the aimed production capacity and product demands. It is also an option to equip the most up-to-date full automatic control as well as the thickness monitor on our calenders. We dissipate thickness fluctuation by adopting the technology of moving rollers, roll bending, cross-axis and bearing preloading and other means. In addition, it can also be equipped with electronic devices to monitor the data and adjust the parameter automatically to ensure the optimal calender processing. Specially designed roller arrangement contributes easy installation with various auxiliary devices as the complex assembly mounted on the calendar, the laminate unit, take-off device and stretching devise where the materials are drawn out of the roller No. 4 of the calender. Quick-changed embossing rollers, rubber rollers, embossing roller set and a lateral widening unit are also armed.
  • Specification

    Dia.24" x 72" L Dia. 30" x 105" L
    Dia.24" x 80" L Dia.32" x 149.6" L
    Dia.26" x 90" L Dia.34" x 157.5" L

    Based on Customer's Requirementt

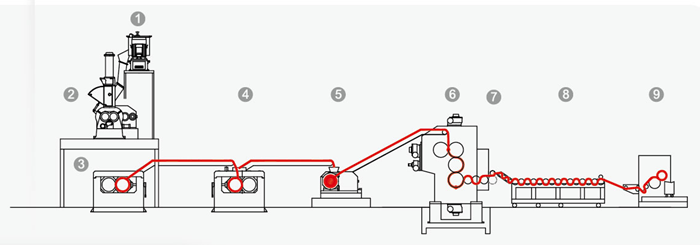

    1. Super Mixer 6. Calender
    2. Banbury 7. Take-off & Embossing Unit
    3. Mixing Roll 8. Cooling Unit
    4. Mixing Roll 9. Auto Surface Winder
    5. Strainer
